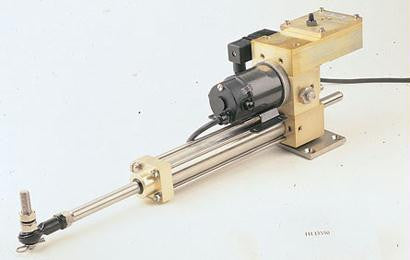

Simrad HLD350 Linear Drive

HLD350 MK2 and HLD2000 MK2 are hydraulic linear drives designed for boats with mechanical steering systems such as wire and cable steering (Edson, Whitlock, Teleflex).

The HLD is a compact, assembled unit, consisting of a reversible hydraulic pump, a balanced hydraulic cylinder, by-pass valve and oil tank. Because of the direct connection to the rudder, the hydraulic linear drive can be used even if the hand steering should fail. This can be an important safety factor.

The by-pass valve makes it possible to use the helm with little back drive force when the autopilot is switched off. The HLD350 MK2 and HLD2000 MK2L supersede the previous HLD350 and HLD2000L models.


Max Boat Displacement 10 tons
Max Stroke 200
Max Torque 610 Nm
Drive Unit Max Thrust 350
Drive Unit Tiller Arm 175 mm \ 6.9 in
POWERPower Supply 12V (2.5-6A) vDC
