Simrad BSM3 Broadband Sounder Module For NSE NSO And NSS

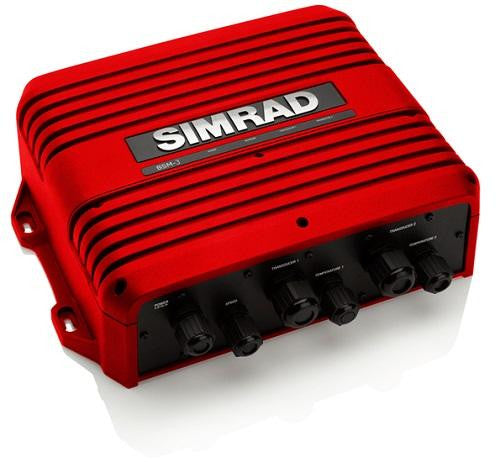

Designed for professionals and sportfishing enthusiasts, the BSM3 is a high performance, dual channel broadband sounder with CHIRP technology. The BSM3's extensive transducer compatibility and highly customizable user interface mean you can venture further offshore, with the confidence to find the fish you're looking for.
Purpose built to last, the BSM3 features rugged all aluminium housing. New transducer connectors make installation and service easier than ever, with no need to open the case or wire anything by hand when using newer Airmar transducers.
The BSM3 is optimized for use with Airmar?s latest wide angle CHIRP transducer series, and perfectly suited for pelagic trolling and other deep water fishing applications.
| General | |
| Connectors | 6 Glands and 1 Ethernet |
| Weight | 10.6Lbs |
| Dimensions | 13.38" x 3.94" x 11.37" |
| Operating Temperature | -15° C to +55° C |
| Storage Temperature | -30° C to +70° C |
| Power Specifications | |
| Output | 250 Watts RMS 2000 Watts Peak to Peak |
| Power Consumption | Range Dependent - Typically less than 10w |
| Voltage | 10.7 - 32Vdc For 12 or 24V systems |
| Sonar Specifications | |
| Frequencies | Broadband Frequencies |
| Transceiver #1: 130‐210 kHz; 40‐60 kHz | |
| Transceiver #2: 40‐60 kHz; 25‐45 kHz | |
| Narrowband Frequencies | |
| Transceiver #1 200 kHz; 50 kHz | |
| Transceiver #2 50 kHz; 38 kHz; 28 kHz | |
| Transmitter and Receiver Type | Dual Broadband Tuned Receivers Dual Tuned CHIRP Transmiers |
| Pulse length | Range Dependent‐ to 70 ms max |
| Max Transmit Rate | Range Dependent‐ to 20 Hz in shallow depths; user selectable. |
| Range Scales | 5, 8, 10, 15, 20, 30, 40, 60, 80, 100120, 150, 200, 250, 300, 400, 500,600, 700, 800, 900, 1000, 1500, 2000,4000, 6000, 8000, 10000, 12000, 15000 |
| Range Control | Auto/Manual range with Zoom, alternang dual frequency display with CHIRP, simultaneous with narrowband |
| Zoom Size | Auto/Manual x2, x3, x4, x5, x6, x7, x8; user selectable |
| Interfaces | |
| Network | Ethernet 10/100 |
In the box:
- BSM-3 sonar
- Power Cable:(4 Pin conn. to 4 bare wires for Power in, Power control bus and external alarm) 2 m (6.5 ft) 000-00128-001
- Ethernet cable yellow 5 Pin 1.8 m (6 ft) 000-0127-51
