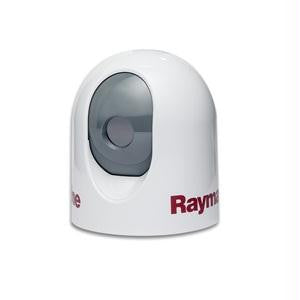

Raymarine T203 Thermal Camera Fixed 320 X 240 30Hz NTSC
Now even small boats can see at night with the T200 Series fixed mount thermal night vision cameras. Detect floating objects, navigation aids, other vessels, and even people in the water using the T200 Series superior FLIR thermal imaging technology.
Engineered for smaller vessels, the T200 Series is both compact and lightweight. The small footprint allows the T200 Series to easily mount on any T-top, cabin roof, radar arch or mast.
The T200 Series cameras are available in either 320 x 240 or 640 x 480 resolutions. The 320 x 240 resolution model features a wide-angle 13 mm lens and 2 digital zoom. The high-resolution 640 x 480 version offers enhanced long-range performance using a 25mm lens and 4 digital zoom capability.
Specifications
| Model Number | T-203 | T-253 |
Thermal Imaging Specifications | ||
| Detector Type | 320 240 VOx Microbolometer | 640 480 VOx Microbolometer |
| FOV | 24° x 18° (NTSC) | 25° 20° (NTSC) |
| Focal Length | 19 mm | 25 mm |
| E-zoom | 2 | 2 , 4 |
| Image Processing | FLIR Proprietary Digital Detail Enhancement | |
System Specifications | ||
| Size | 6"" dia. 7"" ht. | |
| Weight | ~ 3 lbs | |
| Pan/Tilt Coverage | Pan: 30° per key Tilt: +34°, -27° | |
| Video Output | NTSC or PAL, 30 Hz | |
| Connector Types | F-type BNC with BNC-to-RCA adapter included for video out | |
| Power Requirements | PoE injector required per IEEE 802.3af | |
| Power Consumption | 4.8 W nominal; 12.5 W max | |
Environmental | ||
| Operating Temperature Range | -25°C to +55°C | |
| Storage Temperature Range | -40°C to +85°C | |
| Automatic Window Defrost | Standard at Power-Up | |
| Sand/Dust | Mil-Std-810E | |
| Water Ingress | IPx6 | |
| Shock | 15 g vertical, 9 g horizontal | |
| Vibration | IEC 60945; MIL-STD-810E | |
| Lightening Protection | Standard | |
| Salt Mist | IEC60945 | |
| Wind | 100 knot (115.2 mph) | |
| EMI | IEC 60945 | |
Other | ||
| Standard Package | Camera Head with ~5"of Cable, Analog Video, and Ethernet (PoE powered device); Operator Manual CD | |
| Warranty | 2 year | |
| Optional Accessories | Joystick Control Unit; Low Smoke, Zero Halogen Ethernet Cables; Standard Cat 5e Ethernet Cables |
Use a single application to control all of your FLIR Thermal imaging, night vision, and infrared cameras from your iPad or iPhone. The app allows for intuitive control with natural gestures, featuring:
- Automatic discovery and configuration
- Quick browsing of your cameras with a single finger scroll gesture
- Night/thermal/TV signal switch with a single touch of a button
- Video recording and snapshot capturing
Note: At least one properly configured Nexus-enabled sensor device by FLIR is needed for this app to work. This application does not make us of your iPhone, iPad, or iPod camera.
