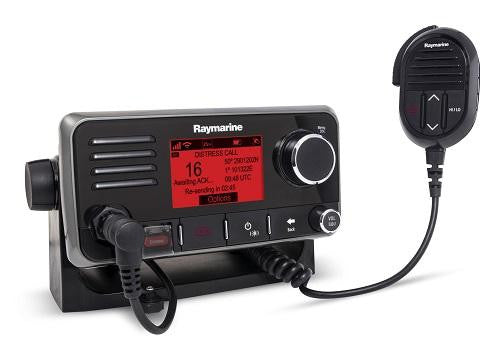

Raymarine RAY60 Compact VHF Radio 25W Class D DSC
Raymarine RAY60 VHF Radio
with Dual Station Control and Intercom Capability
Model: E70245UPC: 723193786918
- Dual station and intercom capable with optional handset Accessory
- Oversized LCD display for better viewing
- Detachable fist-mic with built-in controls and mic relocation capability
- Detachable gunmetal silver bezel and optional black bezel.
- Standard NMEA2000 and NMEA0183 networking for simple connection to onboard systems
The Ray60 VHF Radio has an oversized LCD display with intuitive menu and icons. It boasts a wide array of standard features including NOAA weather alert, dual-watch, tri-watch, scanning, selective scanning, and much more.
The Ray60's fist-mic has built-in controls for channel up/down, hi/low power selection, and instant access to channel 16 or another preferred channel. The fist-mic also features noise-cancelling technology so you'll always be heard loud and clear regardless of engine or background noise. Ray60's fist-mic is also detachable and can be connected from the front or rear for installation flexibility.
The Ray60 features standard NMEA2000 and NMEA0183 networking for simple connection to onboard systems and it integrates seamlessly with Raymarine LightHouse II multifunction displays for advanced DSC functions.
Flexible mounting options
The Ray60 offers flexible mounting too. Use the included trunnion bracket to attach the radio to any console, bulkhead or overhead. The radio can also be flush-mounted using its convenient front-mount attachment points.
The included Gunmetal Silver bezel matches the Ray60 to Raymarine's latest multifunction displays. An optional black bezel kit is also available.
Optional Second Station Kit
The Ray60 VHF Radio also supports the optional second station handset for remote locations. This gives you full-function VHF and intercom capability from a second location onboard.
The handset features an oversized LCD display and high contrast text and graphics that are visible day or night.
In addition to providing full access to all of the VHF capabilities, you'll also enjoy the convenience of station-to-station intercom calling between the handset and main radio.
Specifications| Weight | 4.4lbs |
| Water Integrity | Complies with IPX6 & IPX7 |
| Operating temperature range | -20 C to +60 C |
| Storage temperature range | -25 C to +70 C |
| Humidity | up to 95% |
| Communication Port | NMEA0183 and NMEA2000 |
| Antenna port impedance | 50 ohms typical |
| External speaker impedance | External speaker impedance |
| Reverse polarity protection | Yes |
| Over voltage protection | Yes |
| NOAA Weather Alert | Yes |
| Scanning | All channel and favorite channel scanning |
| Channel watch | Single, dual and tri-watch modes |
| DSC | Class D Digital Selective Calling |
| DSC distress key | On radio face and RayMic |
| On-mic controls | Channel up/down; Hi/Lo power; 16/+ key |
| Noise canceling microphone | Yes |
| Networking | NMEA2000, NMEA0183 and SeaTalkng |
| Mounting kit | Trunnion bracket and 4-point front flush kit included |
| Power output | 25 watt high/1 watt low power |
| Detachable Mic | Yes, optional relocation kit avaialble |
| Second station | Yes, with optional Raymic second station kit |
| Remote Speaker option | Optional passive remote speaker available |
| Intercom | With optional RayMic Second Station Kit |
| Input Voltage | 12V DC (Operational: Minimum 9V, Maximum 16V) |
| Dimensions | 7.8"" W x 5.2"" H x 8"" D |
What's in the Box:
- Radio
- Powercord
- Mounting bracket and knobs
- Flush mount kit
- Documentation
