Raymarine A68 6"" MFD Wifi C-MAP Essentials With CPT100

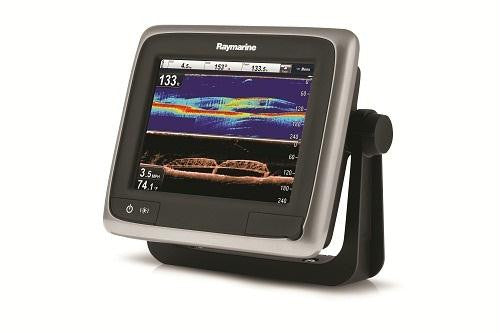

Raymarine A68 5.7"" Multifunction Display

CHIRP Sonar, WiFi, C-Map Essentials USA

• Swipe, Touch and Navigate - very simple. Powered by Raymarine's intuitive LightHouse user interface.
• Super Bright LED Technology - sunlight viewable optically bonded display

Powered by LightHouse II

Designed for the way boaters think, Raymarine's exclusive LightHouse User Interface (UI), offers an incredibly easy-to-use navigation experience. LightHouse intuitively places frequently used navigation functions right at your fingertips.

With just a few swipes of the LightHouse home screen you will quickly become an expert.

Fast and Responsive Chartplotting

• Raymarine's most advanced chartplotter engine with pinch to zoom
• Internal 5hz GPS (10hz in a9 and a12 models) for fast and smooth vessel tracking

Raymarine anywhere onboard

Built-in WiFi - Access aSeries anywhere onboard with Raymarine apps. Play and control MP3 audio on your smartphone remotely using Bluetooth. Download Navionics charts and updates right from the Navionics Boating App on your phone. Sync with Navionics Boating App.

The Smarter Way to Fish

• Dual channel
• Deep water performance
,li>High speed resolution
• Navionics Sonar Chart Support
• Lrecord bathymetric data
• Create your own customised Navionics bathymetric fishing maps
Specifications


Screen Size	5.7""
Screen resolution	640 x 480
GPS	Built in 5Hz Fast Acquisition with WAAS/ EGNOS/MSAS
Chirp Sonar	Yes
Chirp DownVision	yes
Digital Sonar	No
Network sonar support	Yes
Radar	Yes. Optional Radome or Open Array Scanners
Autopilot Control	Full control and integration with Evolution autopilots
Therma, night vision	No
Video Input	IP video only
Cartography options	Raymarine LightHouse Charts and Navionics, C-Map
Memory card reader	Single MicroSD card reader for charts and data
Waypoint symbols	Over 70 unique waypoint icons
Waypoint memory	5000 waypoints, 200 waypoints per route. Unlimited storage with optional microSD cards
Data transfer options	GPX File Format / Raymarine. FSH Format / via Wi-Fi and Navionics Boating App
Interfaces	Raynet Ethernet, SeaTalkng, NMEA2000 (optional adapter), Wi-Fi, Bluetooth
Mounting	Flush and bracket mount kits included
Waterproof rating	IPX6 and IPX7
Input Voltage	12 Vdc


What's in the Box:
• Unit
• Mounting Gasket
• Front bezel
• Sun cover
• Trunnion bracket kit
• Documentation
• 4 x nuts, bolts, spring washers and washers (can be used for either surface or bracket mounting)
• Power cable
• CPT-100 transducer
• C-Map Essentials USA
