Lowrance HOOK4 4"" Ice Machine 83-200KHZ
Lowrance HOOK-4 83/200kHz Ice Machine
Model: 000-12650-001UPC: 9420024146507
- Lowrance-exclusive, brilliant, high-resolution, 4-inch, color display
- CHIRP Sonar - Provide the best possible view beneath the ice
- Highly accurate, built-in GPS antenna plus a detailed U.S. map featuring more than 3,000 lakes and rivers and coastal contours to 1,000 feet
- Optional Americas chart upgrades include Lake Insight™ and Nautic Insight™ PRO and HD, Navionics HotMaps® Premium and Fishing Hotspots® PRO. Global chart upgrade options include Navionics + and Jeppesen C-MAP MAX-N
- Use your Insight Genesis™ custom maps created from your own sonar logs
- Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly
- TrackBack™ to review recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint
- Convenient Page selector menu with quick access to all features using one-thumb operation

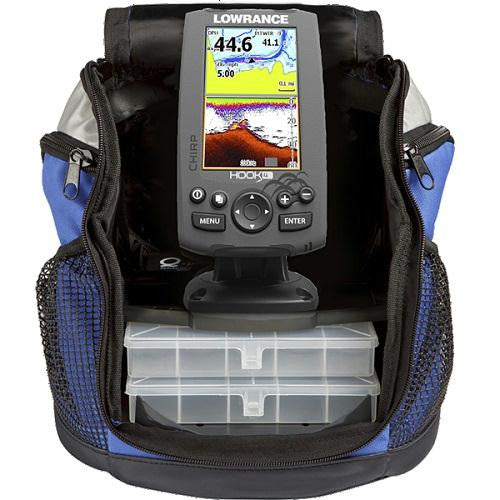

- Complete portable PPI-18I Ice Pack kit extras, with ice transducer & battery included
The Hook-4 Ice Machine use CHIRP Sonar to give you a clear and complete view of the underwater environment beneath the ice. It features enhanced sonar sensitivity, excellent target separation and superior noise rejection, making it easier to see baitfish and gamefish targets. With a built-in GPS antenna and proven navigation features, finding the right fishing spot is easy with the Hook-4, whether you use the base map, optional high-definition chart upgrades, or your own Insight Genesis custom maps.
SpecificationsDisplay Size | 4.3"" |
Display resolution | 480 x 272 |
Display type | 16-bit color TFT |
Backlighting | LED |
Power output | 500w RMS |
Operating frequency | 83/200kHz |
Media port | 1 MicroSD |
Maximum depth | CHIRP Sonar High Range/200 kHz: 1,000 ft / 305 m |
Depth alarm | Yes |
Shallow alarm | Yes |
Temperature readings | Yes |
Ruptes | 100 |
Waypoints | 3000 |
GPS Antenna type | Internal high-sensitivity WAAS + EGNOS + MSAS |
Plot trail storage | Up to 100 trails - up to 10,000 points/trail |
GPS Alarms | Yes |
Optional Mapping | Optional Americas chart upgrades include Lake Insight™ and Nautic Insight™ PRO, Navionics HotMaps® Premium and Fishing Hotspots® PRO. Global chart upgrade options include Navionics + and Jeppesen C-MAP MAX-N |
Basemap | World reference basemap plus over 3,000 enhanced U.S. lake maps with depth contour and shoreline detail, and U.S. coastal depth contours/shoreline detail and spot depth soundings to 1,000 ft /305 m |
Input Voltage | 12vDC |
Dimensions | 6.6"" H x 3.8"" W x 2.2"" D |
What's in the Box:
- Hook 4
- PPP-18i
