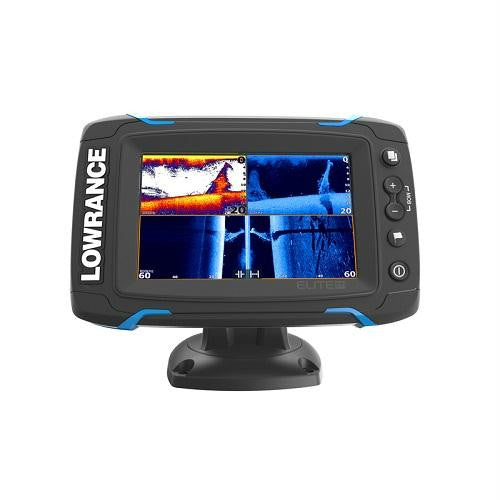

Lowrance ELITE5 Ti Touch Combo No Transducer
Lowrance Elite-5 Ti 5"" Touch Fishfinder/Chartplotter
Model: 000-12420-001UPC: 9420024143148
- High-resolution touch display - LED-backlit color display with touchscreen interface provides fast, fingertip access to all Elite-Ti features
- CHIRP Sonar, StructureScan® HD and DownScan Imaging™ - CHIRP Sonar offers improved fish-target separation and screen clarity, while the StructureScan® HD sonar imaging system with exclusive Lowrance DownScan Imaging™ delivers photo-like images of fish-holding structure on both sides and directly beneath your boat. StructureScan HD requires optional TotalScan™ transducer.
- TrackBack™ - Rewind your CHIRP sonar, SideScan or DownScan Imaging history to review structure or fish targets and mark the location with a waypoint
- Internal GPS antenna - Highly accurate, built-in GPS antenna plus a detailed U.S. map
- Optional chart upgrades - Optional Americas chart upgrades include Lake Insight™ and Nautic Insight™ PRO and HD, Navionics HotMaps® Premium and Fishing Hotspots® PRO. Global chart upgrade options include Navionics + and Jeppesen C-MAP MAX-N and MAX-N+.
- Built-in wireless connectivity - Provides access to the GoFree Cloud where you can shop, purchase, download and immediately use Insight maps, and third-party maps from GoFree partners
- Xi5 Trolling Motor control via Lowrance SmartSteer™
- StructureMap included with built-in StructureScan (requires optional TotalScan transducer)
- Fully customizable split-screen options
| General | |
| Display size | 5in Diag |
| Display Type | WVGA color TFT LCD |
| Resolution | 800H x 480W |
| Backlight | PureWhite LED |
| Display brightness | 1200 Nits |
| Enviromental | |
| Operating temperature | 5°F to 131°F (-15°C to 55°C ) |
| Waterproof | IPX7 with card door closed |
| Electrical | |
| Current draw | 0.9A @ 13VDC with backlight on full |
| Operating voltage | 12vDC |
| Supply voltage | 10.8-17vDC |
| Under Interface | |
| Interface | Single-touch touchscreen |
| Chartplotter | |
| Display modes | North up, Course up (COG), Heading up (heading with external heading sensor or COG) |
| Optional Cartography | Navico Insight HD, Navionics Platinum+/Platinum/Gold, Fishing HotSpots |
| Alarms | No GPS fix, Anchor, Low boat speed, XTE, Waypoint radius, Arrival |
| Sonar | |
| Built-In CHIRP | Yes |
| Built-In Broadband | Yes |
| Built-In StructureScan | Yes |
| Sonar Frequency | Mid/High CHIRP (83/200kHz) 455/800 kHz DownScan™, Low/High CHIRP (50/200kHz) (*Available frequencies determined by connected transducer) |
| Broadband power | 500w RMS |
| Sonar DownScan™ Max Depth 455/800 kHz | 300ft |
| Sonar Broadband Max Depth Low/High (50/200 kHz) transducer | 3000ft |
| Sonar Broadband Max Depth Mid/High (83/200 kHz) transducer | 1000ft |
| Sonar alarms | Fish, Shallow |
| TrackBack | Yes |
| Comms/Interface | |
| NMEA0183 | 1x RS422 port |
| Supported baud rates | 1200, 2400, 4800 (Default), 9600, 19200, 38400, 57600, 115200 |
| NMEA 2000 | No |
| Cata card slot | 1 micro SD card up to 32GB |
| GPS Navigation | |
| GPS type | Internal high-sensitivity WAAS + EGNOS + MSAS |
| Waypoints | 3000 |
| Routes | 100 |
| trails | 100 plots with up to 10,000 points per trail |
| GPS alarms | Anchor, Arrival, Offcourse |
| Background mapping | World reference basemap and enhanced U.S. basemap with over 3,000 enhanced lake maps with depth contour and shoreline detail, plus coastal depth contours/shoreline detail and spot depth soundings to 1,000 ft./305 m |
| Mappign options | Lake Insight™ and Nautic Insight™ PRO and HD, Navionics® Gold and HotMaps® Premium, Fishing Hotspots® PRO and Jeppessen C-Map Max-N Wide. |
| Dimensions | 8.641"" W x 6.332"" H x 2.507"" D |
What's in the Box:
- Elite-5Ti Display
- QRB-5 bracket
- 000-0127-49 Powercord
- 000-0127-50 Fuse Kit
- Documentation
