Lowrance ELITE4X Chirp 50-200 455-800

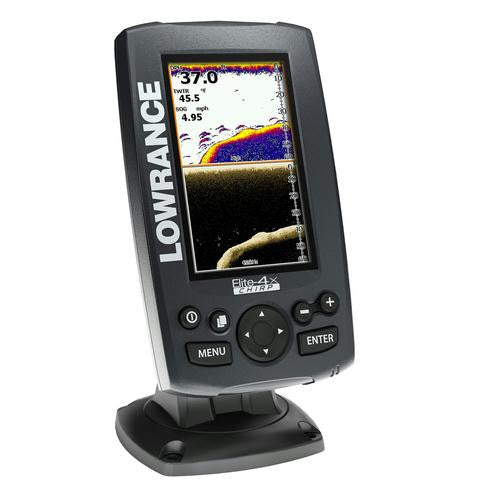

Lowrance Elite-4x CHIRP
50/200 455/800kHz Fishfinder
Model: 000-11820-001UPC: 9420024135617
- CHIRP sonar advantages: - Easier to identify and distinguish bait and game fish targets - Better target identification at greater depths - Mark fish clearly at faster boat speeds
- Lowrance-exclusive, brilliant, high-resolution, 4.3-inch, LED-backlit color display
- CHIRP Sonar plus DownScan Imaging™ -- the power of today’s leading fishfinder technologies combined to provide the best possible view beneath your boat.
- DownScan Overlay™ technology overlays DownScan Imaging onto CHIRP Sonar
- Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly
- TrackBack™ to review recorded sonar history including structure, transitions or fish targets.
- New easy-to-use page selector menu with quick access to all features using one-thumb operation
- Multi-Window Display lets you quickly and easily choose from pre-set page layouts -- including a three-panel view with chart
- Supported by Lowrance Advantage Service program
Elite-4x CHIRP Fishfinder All-NEW, easy-to-use 4.3-inch fishfinder that combines CHIRP Sonar with DownScan Imaging™ technology, and a super-bright, LED-backlit color display.
The Elite-4x CHIRP includes all of the proven features of the Elite-4x HDI Series with the addition of CHIRP sonar technology —providing greater sensitivity, improved target resolution and superior noise rejection for clearer, easy-to-see bait fish and game fish targets — all at a surprisingly affordable price.
Specifications| Display | 4.3"" 16-bit Color TFT |
| Back Lighting | 11-Level LED |
| Resolution | 480 x 272 |
| Power OutPut | RMS (PTP): Max 250W RMS, 30,000W Peak to Peak (analog equivalent) |
| Sonar Frequencies | 455/800 kHz (DownScan Imaging™), Low, Med, High (CHIRP), 50kHz/200kHz (Narrow Band) |
| Warranty | 1 Year |
| Depth Alarm | Yes |
| Shallow Alarm | Yes |
| Temperature | Yes |
| Max Depth | DownScan Imaging™ at 455 kHz: Max 300 ft / 91 m CHIRP Sonar High Range/200 kHz: 1,000 ft / 305 m CHIRP Sonar Low Range/50 kHz: 3,000 ft/914 m |
| Waterproof Rating | IPx7 |
| NMEA Outputs | 1 - NMEA0183 |
| Input Voltage | 10-17vDC |
| Dimensions | 6.6"" H x 3.8"" W x 2.2"" D |
What's in the Box:
- Display
- Mounting bracket
- Powercord
- Transom Mount Transducer
- Owners Manual
