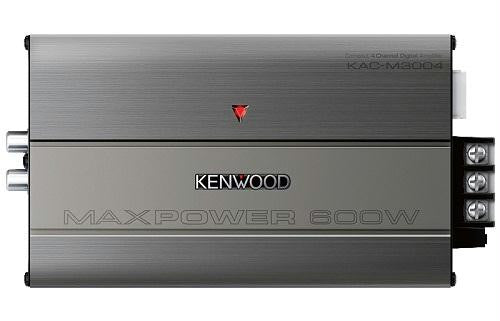

Kenwood KCA-M3004 Amplifier 4 Channel 400W
Kenwood 4 Channel 400w Amplifier
Model: KAC-M3004UPC: 019048210302
- Max Power 600w
- Conformal Coated
- Speaker level input
- Class D
- Variable Low-pass, High-Pass Filter
- Signal Sensing Turn-on
| CEA-2006 Primary Ratings | |
| power output | 50 Watts RMS x 4 at 4 Ohms and ?1%THD+N |
| Signal-to-noise ratio | 76dBA (Reference: 1Watt into 4Ohms) |
| Specifications | |
| Maximum Power output | 600w |
| Signal to Noise ratio | 89dB (Reference: Rated Power into 4Ohms at 14.4V) |
| Frequency response | 20Hz-20kHz (+0dB, -1dB) |
| Input impedance | 10k ohm |
| Speaker impedance | 4? (2? to 8? allowable) |
| bridged connection | 4? to 8? allowable |
| Low-Pass filter | Built in Variable Low-Pass Filter (50Hz-200Hz, -12dB/oct) |
| High-Pass filter | Built in Variable Low-Pass Filter (50Hz-200Hz, -12dB/oct) |
| Filter selector 1 | LPF-OFF-HPF |
| RCA input sensitivity | 0.2 V - 5.0 V |
| Speaker level input sensitivity | 4.0 V - 12.0 V |
| Terminals | |
| Battery & Ground | Screw Type Terminal Block (Ni) (M4) |
| Speaker Output | MOLEX Connector with AWG16 200mm Wire |
| Line | RCA (Ni) |
| Input Voltage | 14.4V?11-16V allowable? |
| Input Draw | 22 A |
| Dimensions | 6-1/2 X '1-3/4 X '3-7/8 inch |
