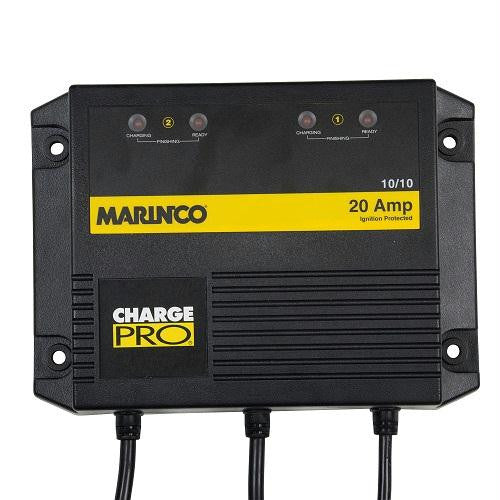

Marinco 28220 20A 2 Bank 110-230V Battery Charger
Marinco On-Board Battery Charger 20A
(10/10) / 12/24V 2 Bank
Model: 28220UPC: 093344058288
- Charge flooded and AGM batteries
- Microprocessor controlled for accurate charging
- Universal input 120/230V input for go-anywhere freedom
- Intuitive operation
- Isolated outputs
- Outputs can be put in series or parallel for higher voltage or current
- Completely sealed, epoxy filled
- IP68 waterproof
- Designed for harsh marine and industrial environments - moisture, salt, shock and vibration tested
- Non corroding housing for ultimate reliability
- Meet global industry standards including UL, CE, CSA, ABYC, California efficiency regulations (CEC)
- Footprint same as former Charge Pro Guest Chargers
- ConnectCharge Plug for easy assembly to inlet (Item #150CCI) with no wiring
This 28220 model is a 2 bank, 20 amp, 12/24V DC output charger with wide input voltage range (100-240V AC), is microprocessor controlled and has a maintenance mode that will keep the charger fully charged. The Marinco 28220 meets the CEC (California Energy Commission), FCC, CE, is RoHS compliant and built to UL 1236. The 28220 has the same mounting dimensions as the 2620A and will replace this model.
Specifications| Dimensions | 7"" H x 9.6"" W x 2.9"" D |
| Protection | Ignition Protection Over Current Over charge Reverse Polarity Thermal Protection Short Circuit |
| Battery size | Group 24 through 31 (up to 120 Amp-Hr) |
| battery Type | 12V lead acid (FLOODED and AGM) |
| Maximum recharge time | 12 hours |
| Input voltage | 100 to 240V AC 50/60 HZ |
| input Current | 5.0 Amps maximum |
| Voltages | |
| Bulk | 14.3VDC @ 5.5 — 6.5 Amps |
| Absorbtion | 14.3VDC @ 3 — 6.5 Amps |
| Float | 13.3VDC @ 0 — 3 Amps |
