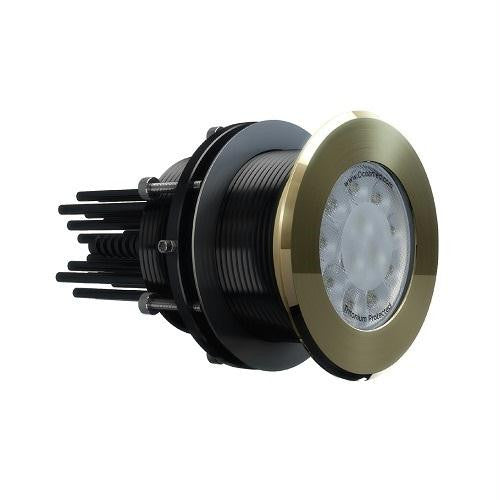

Oceanled Allure XFM150 Ultra White LED
OceanLED Allure 150XFM Gen2 Ultra White
Model: 010203WUPC: 5051803005889
- Xchangeable from Inside the Hull
- For boats over 65' (20m)
- 31/4? Hole
- 40,000+ Hour Life
- Equal to 150w HID/Metal Halide
- Aluminium Bronze AB2
- Tritonium™ Lens Resists Sea Growth
- 6500 Fixture Lumens
Xchangeable Flush Mount is the latest body style within the Pro Series HD range, designed to be exchanged without hauling should servicing ever be needed. XFM features an exceptionally low profile giving it virtually unlimited hull mounting options and can be retrofitted into most existing underwater lighting hole cutsouts,offering immediate benefits of no startup power surge, low heat, minimal maintenance and improved light output.
The Allure 150XFM HD with the brightness equivalent to 150w HID/Metal Halide using the latest High Definition LEDs.
Suitable for Fiberglass, GRP and wooden hulls above 65’ (20m) using
4 or more lights with spacing of 3-6’ (1-1.8m). Deutsche plug-and-play quick connectors make this light a quick fit.
Specifications| Fixture Lumens | 6500 |
| Typical LED life expectancy | 40,000+ hours |
| Minimum-Maximum operating voltage DC | 9-32Vdc |
| Current draw DC | 12V DC 5.5A 24V DC 2.75A |
| Maximum hull thickness | 2 3/4? (57mm) |
| Hull spacing | 3-6’ (1-1.8m) |
| Approx. light penetration (avg. water quality) | 36' |
| Approx. light penetration (avg. water quality) | up to 85' |
| Dimensions | 4 7/50"" Dia x 6 9/20"" L |
What's in the Box:
- 150XFM Ultra White LED
- 2m/6’ Connection Cable
- 12/24V DC Driver w/Power Cable
