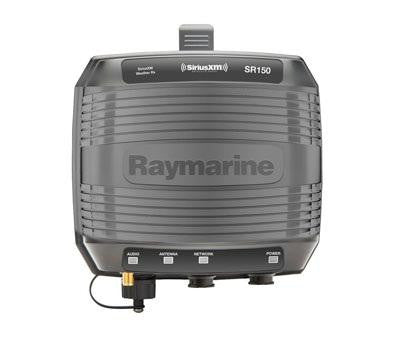

Raymarine SR150 Sirius XM Rcvr Weather Receiver
Raymarine's SR150 Receiver delivers both Marine Weather and Satellite Radio for SiriusXM right to your multifunction display. The SR150 has a standard RayNet high speed Ethernet connection that works with Raymarine's latest a-Series, c-Series, e-Series or gS-Series multifunction display systems. The SR150 is also compatible with prior generation C-Series Widescreen, E-Series Widescreen and G-Series systems using an optional RayNet to RJ45 patch cable, sold separately.
The SR150 features an ultra-compact design and simplified installation to get you up and running quickly. The SR150 is also designed for the future with built-in support for forthcoming SiriusXM data services. Complete your SR150 installation with any SiriusXM compatible marine antenna and cable, and a SiriusXM Subscription, sold separately.
|
| |
| Product | Raymarine SR150 |
E70161 | |
| SIRIUS Marine Weather Receiver with RayNet (SeaTalkhs) Connectivity | |
|
Compatible Displays | New Products: GPM-400, C-Widescreen, |
| | |
|
Weather Subscription Options | **SiriusXM Marine Weather Marine Offshore and Coastal Packages |
| Audio Subscription Options | SiriusXM Channel Line-up |
|
Nominal Voltage | 12 or 24 V dc |
| Operating Voltage Range | +9 to 32 V dc |
| Current | Power: <3W Typical: 0.27A @ 12.0V |
|
Operating Temperature< /td> |
-15 C to 55 C |
|
Storage Temperature | -35 C to 85 C |
| Relative Humidity |
Max. 95% |
| Waterproofing | IPX7 |
| SeaTalkHS | 1 port |
| SeaTalkng< /sup> | No connection |
|
SIRIUS Audio Out (line level) | 1 x 3.5mm stereo ports (Female) |
|
SIRIUS Antenna Input | 1 connection (SMA) Antenna SMA - SMB adaptor - 20mm Provided |
| Dimensions | 134mm(W) x 134mm(D) x 57mm(H) 5.25in(W) x 5.25in(D) x 2.25in(H) |
| Weight | 0.40 kg (0.88 lbs) |
|
Supplied With | A80233 - SR150 Pwr Cable - 2m A80236 Antenna SMA-SMB Adaptor - 20mm A80237 - SR150 Handbook/Bracket/ Bolt Kit |
| Accessories | E03010 - SIRIUSXM Weather Antenna + 7.5M CBL (Shakespeare SRA40) |
**SiriusXM Marine Weather features marked as NEW in the SiriusXM Marine Weather feature table have not been implemented in Lighthouse v6.27 software update. Raymarine's goal is to provide support for these features in a future Lighthouse update. A commitment to timing cannot be offered at this time.
