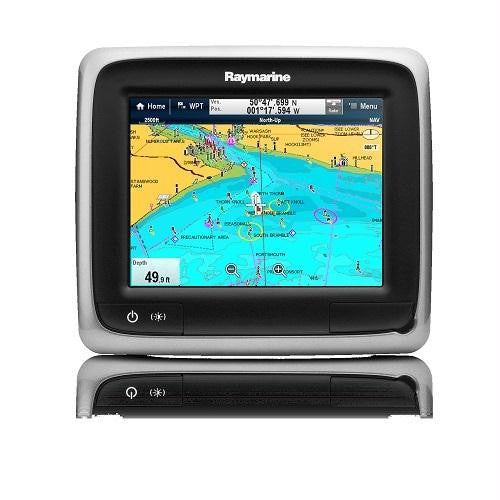

Raymarine A65 5.7"" MFD Wifi Navionics Plus
Raymarine A65 5.7"" Multifunction Display
WiFi, navionics+ North America
Model: E70162-NAGUPC: 723193798317
- Swipe, Touch and Navigate - very simple. Powered by Raymarine's intuitive LightHouse user interface.
- Super Bright LED Technology - sunlight viewable optically bonded display
- Sonar Capable - network a CP100, CP300 and/ or CP450C module.
Powered by LightHouse II
Designed for the way boaters think, Raymarine's exclusive LightHouse User Interface (UI), offers an incredibly easy-to-use navigation experience. LightHouse intuitively places frequently used navigation functions right at your fingertips.
With just a few swipes of the LightHouse home screen you will quickly become an expert.
Fast and Responsive Chartplotting
- Raymarine's most advanced chartplotter engine with pinch to zoom
- Internal 5hz GPS (10hz in a9 and a12 models) for fast and smooth vessel tracking
Raymarine anywhere onboard
Built-in WiFi - Access aSeries anywhere onboard with Raymarine apps. Play and control MP3 audio on your smartphone remotely using Bluetooth. Download Navionics charts and updates right from the Navionics Boating App on your phone. Sync with Navionics Boating App.
Specifications| Screen Size | 5.7"" |
| Screen resolution | 640 x 480 |
| GPS | Built in 5Hz Fast Acquisition with WAAS/ EGNOS/MSAS |
| Chirp Sonar | No |
| Chirp DownVision | No |
| Digital Sonar | No |
| Network sonar support | Yes |
| Radar | Yes. Optional Radome or Open Array Scanners |
| Autopilot Control | Full control and integration with Evolution autopilots |
| Therma, night vision | No |
| Video Input | IP video only |
| Cartography options | Raymarine LightHouse Charts and Navionics, C-Map |
| Memory card reader | Single MicroSD card reader for charts and data |
| Waypoint symbols | Over 70 unique waypoint icons |
| Waypoint memory | 5000 waypoints, 200 waypoints per route. Unlimited storage with optional microSD cards |
| Data transfer options | GPX File Format / Raymarine. FSH Format / via Wi-Fi and Navionics Boating App |
| Interfaces | Raynet Ethernet, SeaTalkng, NMEA2000 (optional adapter), Wi-Fi, Bluetooth |
| Mounting | Flush and bracket mount kits included |
| Waterproof rating | IPX6 and IPX7 |
| Input Voltage | 12 Vdc |
What's in the Box:
- Unit
- Mounting Gasket
- Front bezel
- Sun cover
- Trunnion bracket kit
- Documentation
- 4 x nuts, bolts, spring washers and washers (can be used for either surface or bracket mounting)
- Power cable
- Navionics+ microSD
