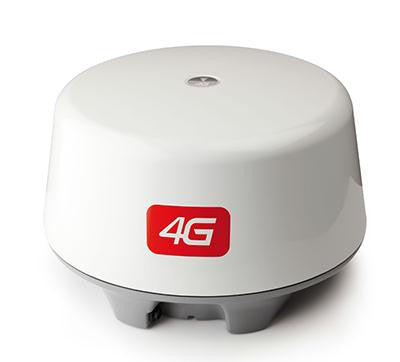

Lowrance Broadband 4G Radar
Enjoy a new, higher standard of situational awareness with Beam Sharpening for enhanced target protection.
- Now with 50% more true range.
- Crystal Clear Images
- Zero Radiation Hazard
- Beam Sharpening
- InstantOn™
- High-Speed
- Low Power Consumption
- Mount Anywhere
- Quick Installation
- Unrivalled Short-Range Performance
- 10 MARPA Targets
Beam Sharpening
The only dome radar in the world to employ beam sharpening. Now you receive the benefits of unprecedented target separation from a radome, which allows you to see the sharpest images possible when you need them most.
MORE RANGE
With 50% more true range than Broadband 3G™ Radar, you can see crystal clear targets at up to 32nm and inside strong storm cells at up to 17nm.
UNRIVALLED SHORT-RANGE TARGET DISCRIMINATION
With twice the azimuth resolution of any other 18" radome on the market, moored vessels, docks, channel markers and other critical targets are displayed with pronounced clarity and separation.
ZERO MAIN BANG ? VISION WHERE YOU NEED IT MOST
Broadband Radar™ technology eliminates the "main bang" ? obscured viewing "dead zone" immediately around the boat - associated with pulse radar. Now you can see targets close-in for the safest navigation of harbours, estuaries and marinas.
LOW RF TRANSMISSION FOR SAFE, FLEXIBLE INSTALLATION
Transmitting less than 1/5 the power of an average mobile phone and 1/10,000 the power of a typical pulse radar, Broadband 4G™ Radar can be safely mounted anywhere onboard your boat.
INSTANT NAVIGATION
No need to wait 2-3 minutes for a magnetron to warm up. Broadband Radar technology is 100% solid-state, providing navigation in seconds with InstantOn™ technology.
| Antenna Beam Width Vertical | 25 ° |
| Antenna Receiver Noise Figure | 6 dB |
| Antenna Rotation Speed | 24/36 rpm +/- 10% RPMs |
| Radar Warm Up Time | 0 min |
| Radar Wind Resistance | 51 m/sec (Max:100 Knots) |
| Transmitter Frequency | X-band - 9.3 to 9.4GHz |
| Transmitter Power Output | 165mW nominal |
| Data I/O Protocol | High Speed Ethernet |
| Mounting | Bolts: 4x30xM8 - 304 stainless steel |
| Waterproof Standard | IPX6 |
| Height | 11 in \ 280 mm |
| Diameter | 19.2 in \ 488 mm |
| Weight | 16.31 lbs \ 7.4 kg |
| Humidity | +95°F/+35°C, 95% RH |
| Operating Temperature | -13° to +131°F/-25° to +55°C |
| Power Supply | 9 to 31.2vDC (12/24 Volt systems) Reverse polarity protection vDC |
| Power Consumption | 20W (Typ.) @ 13.8vDC |
| Power Consumption Standby | 2.9W(Typ.) @ 13.8vDC |
| Interconnection Cable | 33ft/10m standard with RI10 thin custom (Max 30m) |
| Interface Heading | SimNet or NMEA 0183 with cable kit into display |
