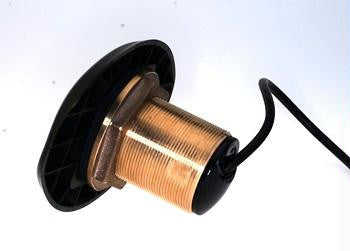

Lowrance 000-11133-001 Hdi 0D Tilt 50-200 455-800

• Works with HDS Gen2 Touch and Elite-7 HDI Sonar models
• Provides 50/200 kHz and 455/800 kHz Down Scan imaging plus temperature.
• Available in 3 different tilt angles
  • 000-11133-001 0°
  • 000-11134-001 12°
  • 000-11135-001 20°

Performance

Depth capabilities with the HDS Gen2 Touch or the Elite-7HDI with normal saltwater conditions.

• 50kHz 3,000ft
• 200kHz 1,000ft
• 455kHz 300ft
• 800kHz 100ft

Beam Width at -3dB

• 50kHz 45°
• 200kkHz 11°
• 455kHz fore to aft 2.8°, Port to Starboard 56°
• 800kHz fore to aft 1.6°, Port to Starboard 32°

Connection

The transducer comes with a 33 foot cable with blue 7 pin Lowrance connector.
