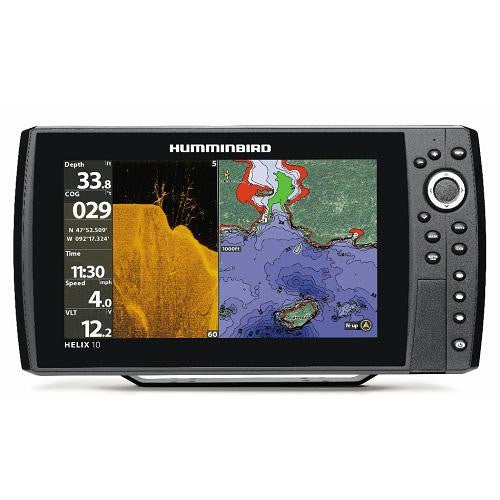

Humminbird HELIX10 DI 10"" Down Imaging Sonar GPS
Humminbird HELIX 10 DI600 X 1024 10.4"" WSVGA Display, Down Imaging Sonar w/GPS
Model: 409970-1UPC: 082324047404
- 360 Imaging - We have you surrounded. 360 Imaging allows you to isolate your sweep, see 5 preset views or see all around you.
- SwitchFire Sonar -- Take command of how your sonar returns appear with our Clear and Max Modes.
- DualBeam Plus Sonar - Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area
- Internal GPS - GPS antenna built into the head unit
- Upgradeable Software - Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section of the site.
- High Definition Display - Provides bright, crystal-clear images for easy viewing in harsh sunlight.
- Dual SD Card Slots -- Use one slot for advanced cartography and the other to save screenshots, sonar recordings and waypoints.
- Contour XD is Humminbirds built-in base map cartography that covers 3,000 US lakes with depth contours and many other locations without contours.
- Ethernet - Rig up the ultimate fishing system. Use our 5-Port Ethernet switch to link together multiple Humminbird head units or share transducers.
- AIS - Battle fish - not other boats. Humminbird's state of the art AIS technology takes the risk and guesswork out of navigating high-traffic channels or low-visibility seas.
- AutoPilot - Never deviate from your route with the precise control and proven performance of your Humminbird Autopilot System.
- i-Pilot Link is an integrated GPS Trolling System available on select Minn Kota Terrova and PowerDrive V2 motors which enable your motor and Humminbird to communicate.
- NMEA 2000 - Get an at-a-glance view of fuel consumption, engine performance and other vessel data.
- Wireless - Take wireless control of your Humminbird with our new Bluetooth Remote and Dongle.
- Down Imaging Sonar -- Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves
The HELIX 10 DI GPS features a super bright LED backlit 10.1"" display. This wide screen 1024H x 600V color display provides bright, crystal-clear images for easy viewing in harsh sunlight. The HD Down Imaging sonar with DualBeam PLUS with SwitchFire has 4000 watts PTP power output, GPS Chartplotting with built-in Humminbird ContourXD map and Ethernet Networking capabilities. Includes a unit cover, dual card reader and Instant Access Preset buttons.?
SpecificationsDisplay Size | 10.1"" |
Display resolution | 600 X 1024 |
Display Type | Color TFT |
Sonar standard | Down Imaging/DualBeam PLUS |
Standard sonar coverage | 16°, 28°, 45° & 75° @ -10db |
Standard sonar frequency | 83/200/455/800 kHz, optional 50kHz transducers available |
Target Seperation | 2.5"" |
Power output RMS | 500 watts |
Power output peak to peak | 4000 watts |
Depth capability | 350 ft DI, 600 ft |
Speed | Yes via GPS |
Temperature | Built-in to transducer |
GPS Receiver | Yes |
GPS Tracking | Yes |
GPS Chartplotting | Yes |
Waypoints, Routes, Track points | 2750, 45 , 50/20000 |
Optional Cartography | Humminbird, Navionics Gold, navionics Plus, Navionics Platinum |
360 Imaging | Optional |
I-pilot link | Optional |
HD Radar | Optional |
NMEA2000 | Yes |
Weathersense | No |
ASInterlink | No |
AIS Compatable | Yes |
Switchfire sonar | Yes |
Screen snapshot | Yes |
Sonar recording | Yes |
Split screen zoom | Yes |
3D Chartview | Yes |
Large Digits View | Yes |
Win/Narrow cone split screenn | Yes |
Media card slots | 2 |
Mark Structure on Sonar | Yes |
Input Voltage | 10-20vDC |
Dimensions | Gimbal Mount:13.44""W x 7.12""H x 4.20""D Indash Mount:13.44""W x 7.12""H x 3.99"D |
