Garmin GT50M-TM Transom Mount Downvu-Sidevu 12-Pin
Garmin GT50M-TM Plastic Transom Mount
DownVü/SideVü 500 W (CHIRP 455/800 kHz) Traditional 300 W (Mid-band CHIRP 80-160 kHz) Transducer with Temp (12-pin)

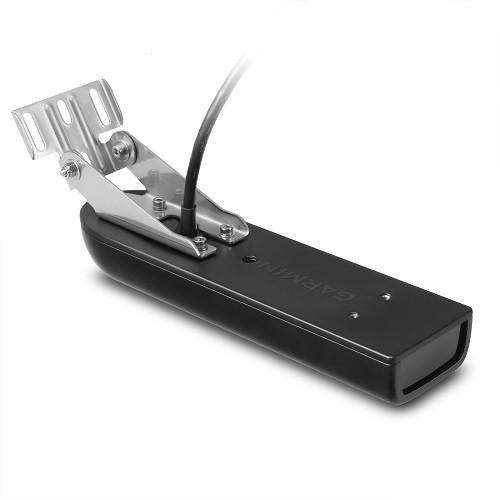

Model: 010-0196500This transom mount transducer provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. This traditional CHIRP and CHIRP DownVü/SideVü transducer is optimized for clearer images at shallower depths.
The CHIRP DownVü/SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 455/800 kHz. The traditional CHIRP sonar has a power rating of 300 W and operating frequencies of mid-band CHIRP 80-160 kHz. It also includes a built-in fast response temperature sensor.
Specifications| DownVü/SideVü Capability | |
| CHIRP | Yes |
| Frequency | 455-800 |
| Power | 500w each total 1,500w |
| Maximum depth | 750 ft down, 500ft left and right |
| Traditional Sonar Capability | |
| CHIRP | Yes |
| Frequency | Mid-band CHIRP 80-160 |
| Power | 300w |
| Maximum depth | 1,500 saltwater |
| Water temperature | Yes |
What's in the Box:
- 12-pin transom mount transducer
- Instalation instructions
- Mounting hardware
