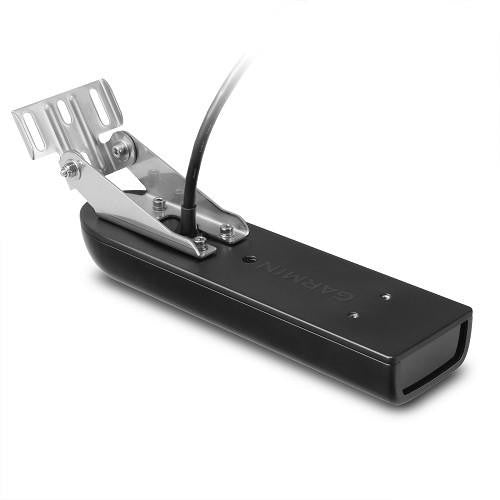

Garmin GT41-TM Transom Mount Downvu-Sidevu 12-Pin
Garmin GT41-TM Plastic Transom Mount
DownVü/SideVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (50/200 kHz) Transducer with Temp (12-pin)
Model: 010-01964-00UPC: 753759152857
This transom mount transducer provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. This traditional and CHIRP DownVü/SideVü transducer is optimized for depth performance and rough conditions.
The CHIRP DownVü/SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 260/455 kHz. The traditional sonar has a power rating of 600 W and operating frequencies of 50/200 kHz. It also includes a built-in fast response temperature sensor.
Specifications| DownVü/SideVü Capability | |
| CHIRP | Yes |
| Frequency | 260/455 |
| Power | 500w each total 1,500w |
| Maximum depth | 1000 ft down, 750ft left and right |
| Traditional Sonar Capability | |
| CHIRP | No |
| Frequency | 50/200 |
| Power | 600w |
| Maximum depth | 1,500 saltwater |
| Water temperature | Yes |
What's in the Box:
- 12-pin transducer
- mounting hardware
- installation instructions
